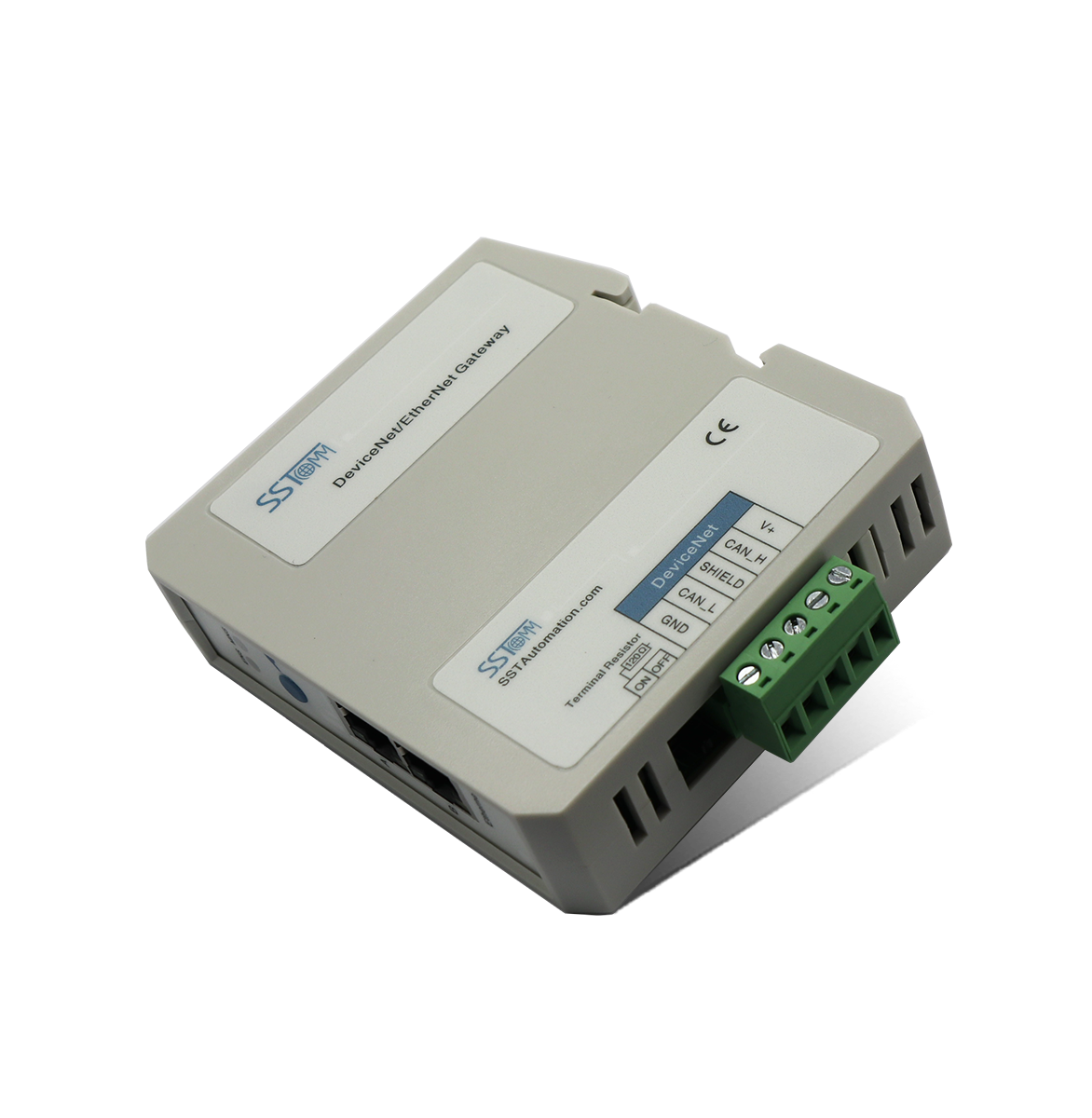

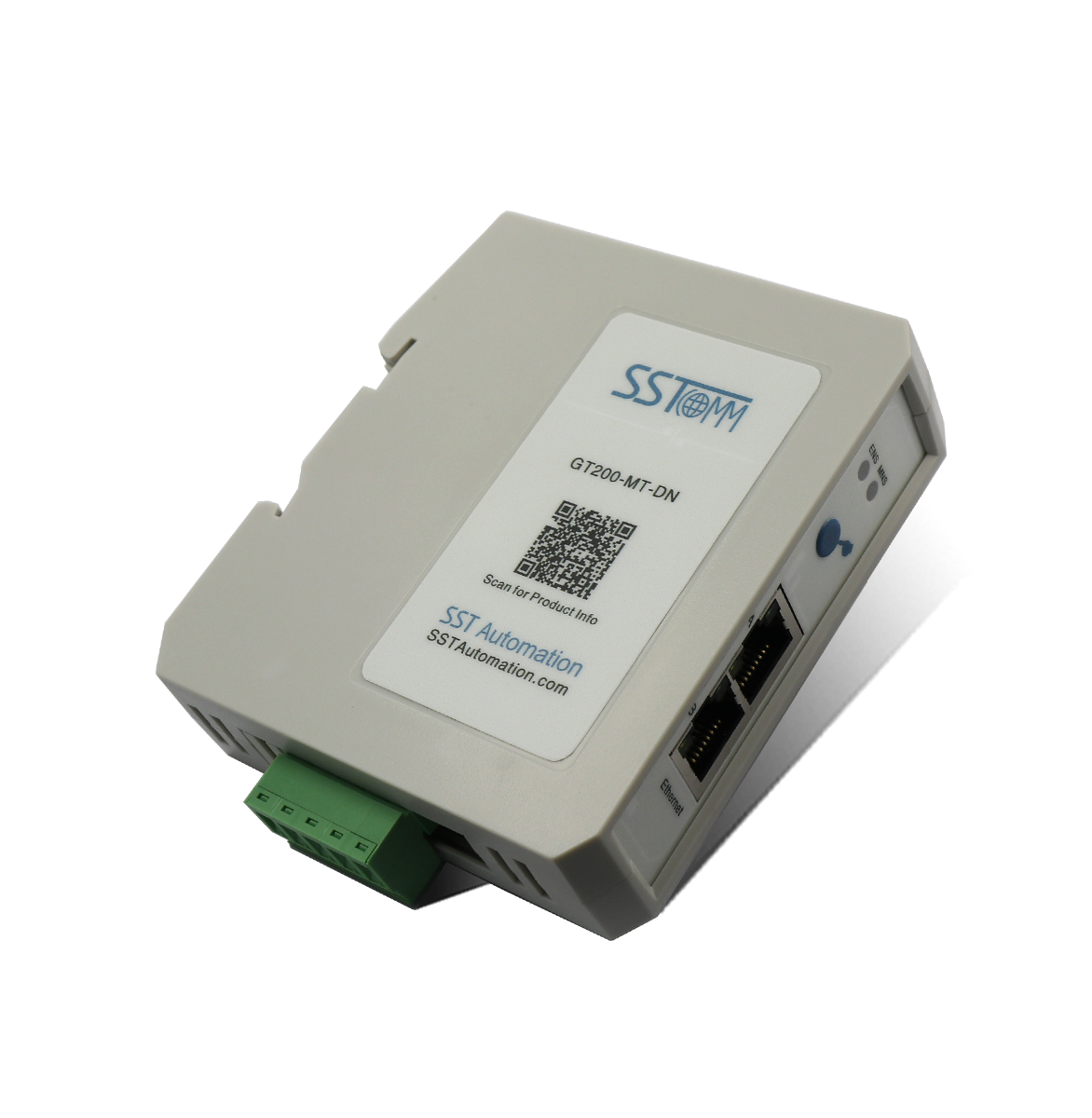

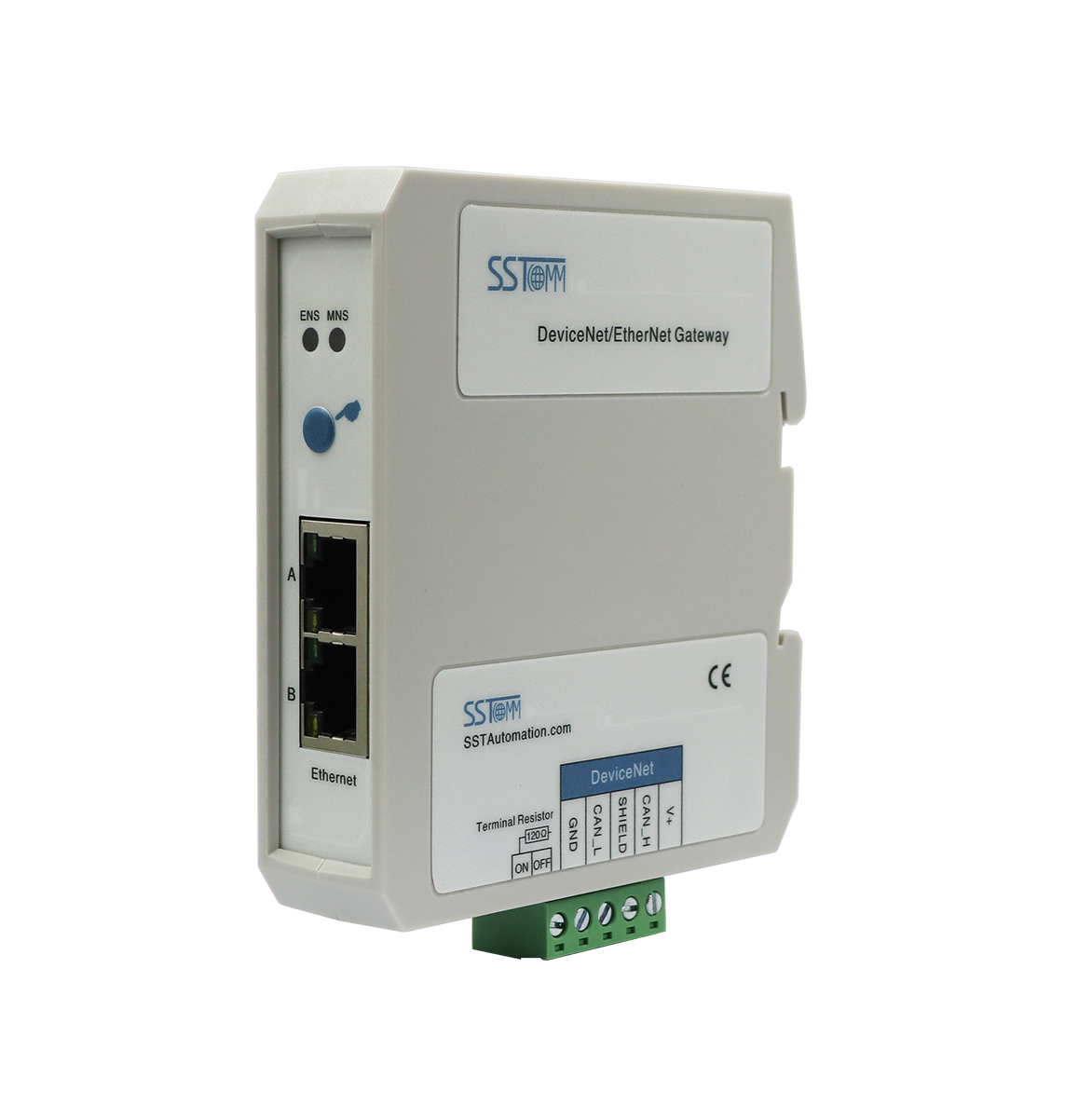

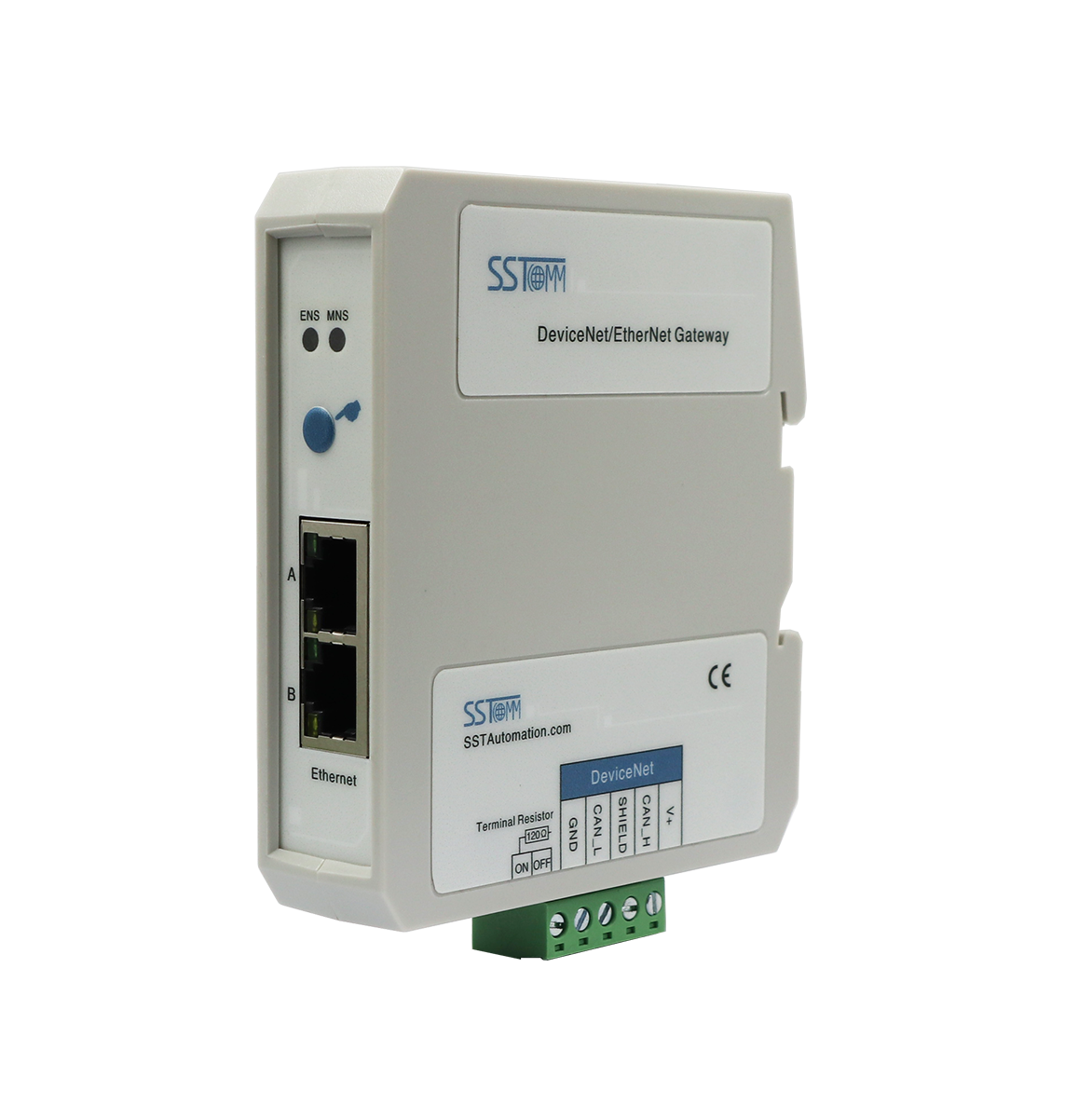

EtherNet/IP Features

• Acts as an EtherNet/IP adapter device.
• Supports ODVA-compliant EtherNet/IP communication protocol.
• Supports Both I/O(Class1) and MSG(Class3) Communication Modes.
• Status Word Function.
• Custom Vendor Code Support.
• Data Clear/Hold on DeviceNet Device Disconnection.

Modbus TCP Features

• Acts as a Modbus TCP server.
• Dual 10/100 Mbps auto-negotiating Ethernet ports with an integrated switch.
• Supports up to 4 Modbus TCP clients.
• Supported function codes: 03, 04, 06, 16.

DeviceNet Features

• Configurable as a DeviceNet Scanner (Master) or Adapter (Slave) on the DeviceNet network.
• Supported baud rate: 125K, 250K, 500K.

DeviceNet Scanner Features

• Supports pre-operational and operational state.
• Comprehensive Software Management: The included SST-DNET-COM software allows for online scanning of adapters, rapid I/O parameter retrieval, online debugging, offline configuration (upload/download), and easy mode switching.
• Supports up to 40 DeviceNet adapters. Maximum 1428 bytes of input and 1428 bytes of output. (Max. 224 bytes input and 224 bytes output for single adapter)
• Supports scanning DeviceNet adapters and parameters configuration.
• Supports I/O messaging including Polling and Change-of-State (COS).
• Features Byte Swap functionality for flexible data mapping.
• Supports clear and hold function.

DeviceNet Adapter Features

• Maximum 224 bytes of input and 224 bytes of output.
• Supports DeviceNet scanner I/O Polling.
• Supports byte swap function on DeviceNet adapter side.
• Supports clear and hold function, connection status information on DeviceNet adapter and Modbus TCP side.
• Modbus TCP supports 03/04 function code options to choose to read the input/output data area. The register starting address can be configured on DeviceNet adapter side.

General

• Power: 24VDC (9V~30V), 80mA @ 24VDC.
• Operating temperature: -4°F to 140°F (-20°C to 60°C).
• Relative Humidity: 5% to 95% (non-condensing).

Physical Features

• Dimensions (W × H × D): 1.0 × 4.0 × 3.6 in (25 × 100 × 90 mm).
• Mounting: DIN Rail Mounting (35mm).
• Protection level: IP20.
