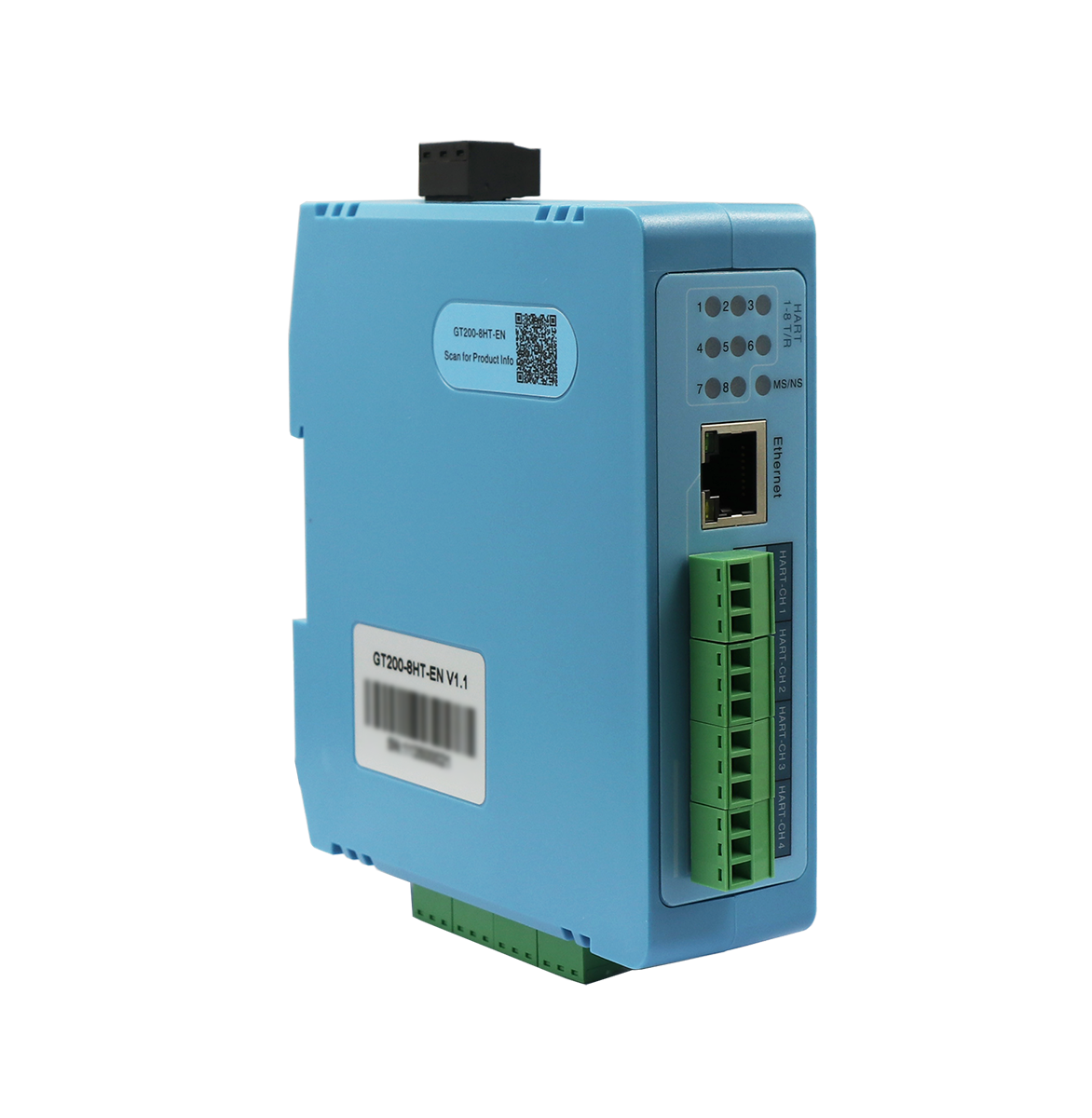

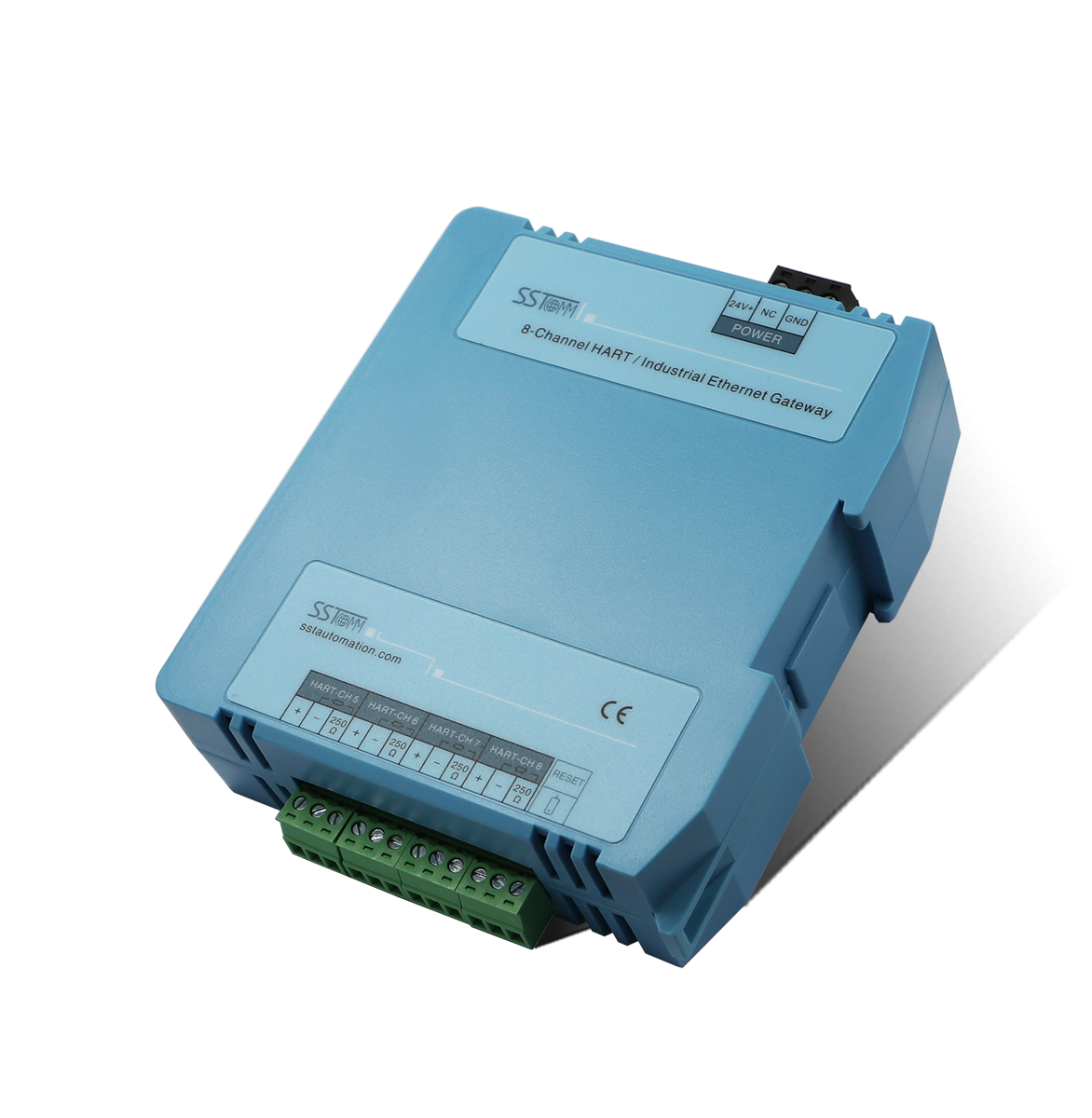

Technical Specification:

HART Features

• Supports 8 independent HART channels, with each channel connecting up to 32 nodes.
• Each HART interface supports both point-to-point and multi-drop communication modes.
• Supports all commands of the HART 5, 6, and 7. Features NAMUR NE107 compliant diagnostics.
• Each HART command can be configured to output in change-of-state, polling, initialization, or disabled mode.
• Supports up to 127 configurable HART commands.

Modbus TCP Features

• Acts as a Modbus TCP server for seamless integration with PLCs and SCADA systems.
• Supports Modbus function codes: 0x03 (Read Holding Registers), 0x04 (Read Input Registers), 0x06 (Write Single Register), and 0x10 (Write Multiple Registers).
• Handles up to 8 concurrent Modbus TCP connections.
• Supports up to 512 Modbus commands simultaneously.
• Supports all standard HART protocol commands.
• Features an 10/100 Mbps auto-negotiation Ethernet interface.
• Includes IP conflict detection and automatic routing for stable network performance.
• Maximum input/output data: 3000 bytes.

General

• Power supply: 24VDC (range: 9–30VDC), 70mA @ 24VDC.
• Power interface isolation: 1.5kV for improved system reliability.
• Operating temperature: -40°C to 70°C (-40°F to 158°F).
• Humidity: 5% to 95% RH (non-condensing).

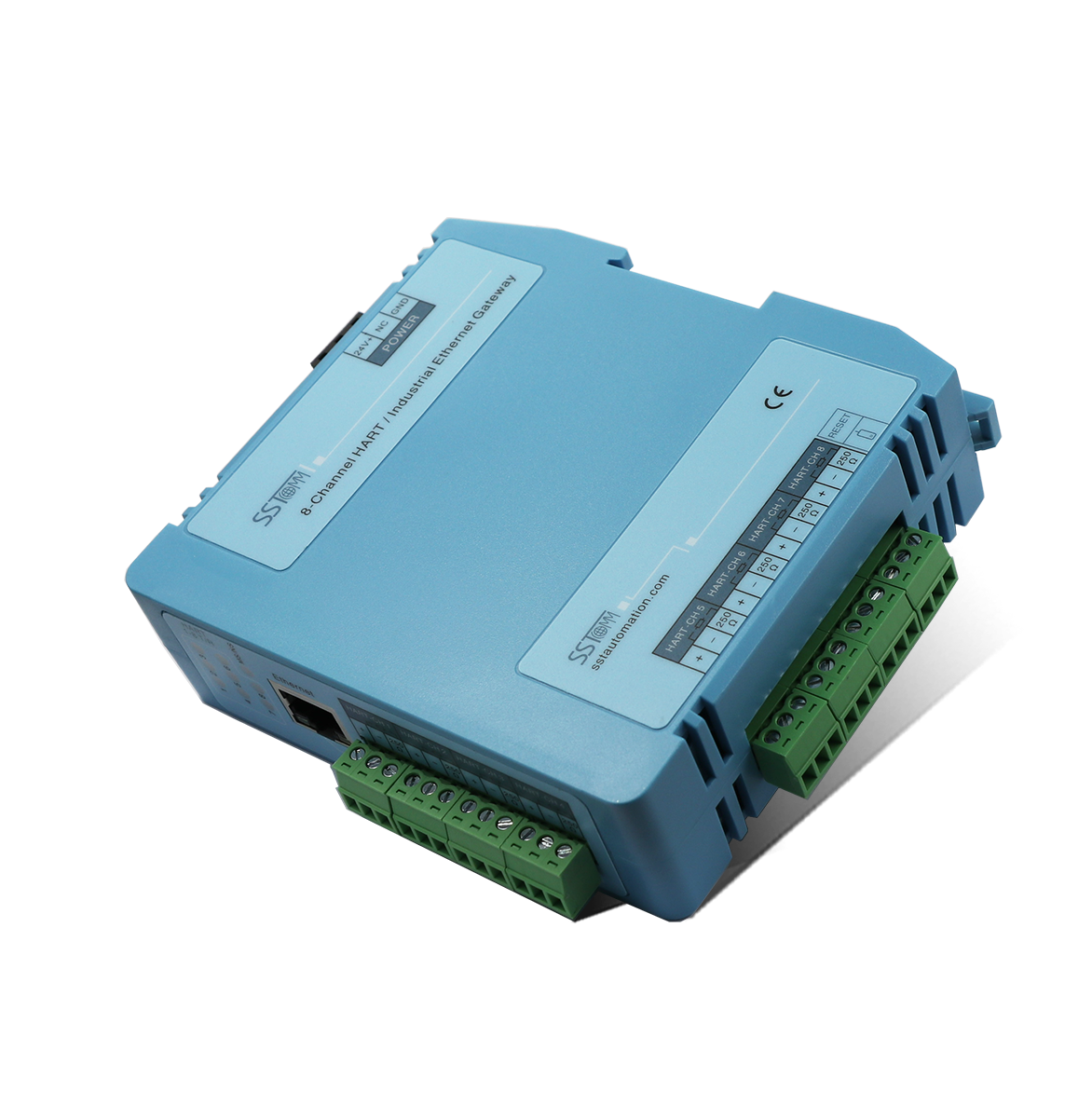

Physical Features

• Dimensions(W x H x D): 1.33 in x 4.56 in x 4.1 in (34 mm x 116 mm x 105 mm).
• Mounting: 35mm DIN rail.
• Protection rating: IP20.
