EtherNet/IP Series

CANopen to EtherNet/IP Gateway
GT200-EI-CO

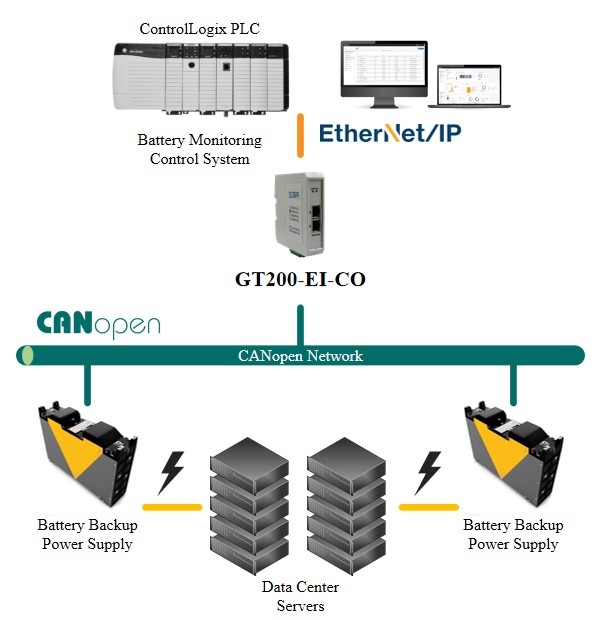

The GT200-EI-CO is a high-performance gateway that seamlessly integrates CANopen devices into EtherNet/IP networks. Serving as a CANopen master and EtherNet/IP adapter, it enables smooth and reliable data exchange between the two protocols. With a compact design and an integrated 5-pin CAN terminal for both communication and power, the GT200-EI-CO ensures easy installation and streamlined wiring.
CANopen to EtherNet/IP Gateway
GT200-EI-CO V4.5
The GT200‑EI‑CO is a high-performance gateway that seamlessly integrates CANopen devices into EtherNet/IP networks. Acting as both a CANopen master and an EtherNet/IP adapter for efficient, real-time data exchange. It features a compact design with separate 3-pin terminals for CAN communication and power supply, simplifying installation and wiring in industrial environments.

CANopen to EtherNet/IP Gateway

GT200-EI-CO
909-490-7557
WhatsApp

WhatsApp

+1-909-490-7557

The GT200-EI-CO is a high-performance gateway that seamlessly integrates CANopen devices into EtherNet/IP networks. Serving as a CANopen master and EtherNet/IP adapter, it enables smooth and reliable data exchange between the two protocols. With a compact design and an integrated 5-pin CAN terminal for both communication and power, the GT200-EI-CO ensures easy installation and streamlined wiring.

 Technical Specification:

  • Features a single-channel CAN 2.0A interface. CAN baud rate: 10kbit/s, 20kbit/s, 50kbit/s, 100kbit/s, 125kbit/s, 250kbit/s, 500kbit/s, 1Mbps.
  • DS-301 V4.01 and CiA Draft Recommendation 303 compliant.
  • Advanced CANopen Management: Configurable SDO polling intervals, EtherNet/IP-initiated SDO commands, adjustable SDO retry limits, and polling delays.
  • Supports configurable NMT_RESET commands for flexible network management.
  • Fully compliant with ODVA standards for EtherNet/IP communication, Supports 510/504/256/128/64/32/16/8 bytes.
  • Supports TCP and UDP port communication.
  • The CAN 5-pin terminal includes the CAN and power interface.
  • Power supply: 24VDC ( 11V-30V), maximum 80mA(24VDC).
  • Operating Temp: -4°F to 140°F ( -20°C to 60°C), Rel. Humidity: 5% -95%, non-condensing.
  • Dimensions (W × H × D): 1.0 × 4.0 × 3.6 in (25 × 100 × 90 mm).
